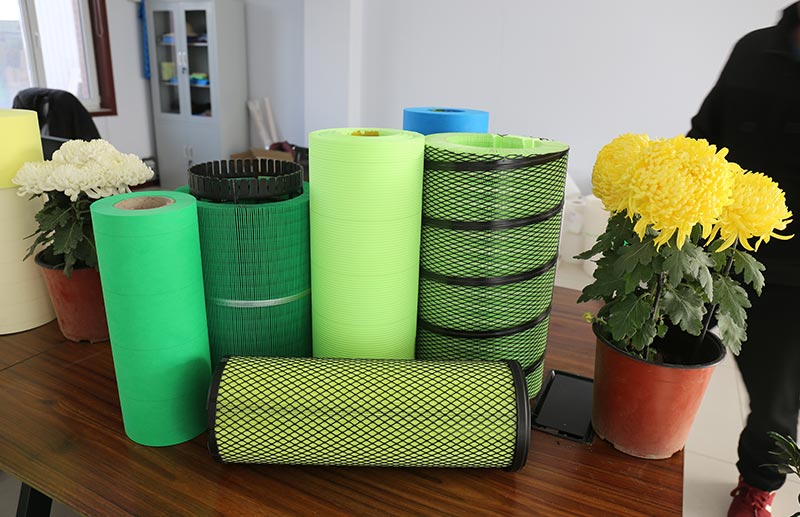

Dust Collector Air Filter Media

Dust collector filter media request higher efficiency due to working environment and conditions, so superfine fiber is necessary during production to increase filter media performance.

Inquire Now Next Product

product details

Dust collector filter media request higher efficiency due to working environment and conditions, so superfine fiber is necessary during production to increase filter media performance.

This filter media is applied to the air filter of industrial dust collector. When air goes through filter, dust will be separated and stayed on the surface of filter media. Clean air passes and enters in the system, then exhausted from air outlet. After using for some time, cleaning device will start and make pulses to clear accumulated dust on the filter. Therefore, good filtration efficiency, high burst strength and smooth surface are the necessary requirements of dust collector filter media.

1. PRODUCT MODEL: FLA-9A-Y301C

Technical Data

Specification	Unit	Value
Grammage	g/㎡	115±5
Thickness	mm	0.35
Corrugation Depth	mm	0.42
Air Permeability	L/㎡·s	450±30
Max Pore Size	um	75±5
Mean Pore Size	um	60±5
Burst Strength	Kpa	250
Longitudinal Stiffness	mN.m	3.0
Moisture	%
Color		Light Yellow

2. PRODUCT MODEL: FLA-9A-W301C

Technical Data

Specification	Unit	Value
Grammage	g/㎡	135±5
Thickness	mm	0.45
Corrugation Depth	mm	0.45
Air Permeability	L/㎡·s	300±30
Max Pore Size	um	60±5
Mean Pore Size	um	50±5
Burst Strength	Kpa	320
Longitudinal Stiffness	mN.m	5.0
Moisture	%	22±2
Color		White

3. PRODUCT MODEL: FLA-9A-Y201P

Technical Data

Specification	Unit	Value
Grammage	g/㎡	140±5
Thickness	mm	0.45
Corrugation Depth	mm	0
Air Permeability	L/㎡·s	200±30
Max Pore Size	um	55±5
Mean Pore Size	um	50±5
Burst Strength	Kpa	430
Longitudinal Stiffness	mN.m	4.5
Moisture	%	22±2
Color		Yellow
